Our Drain buckets are narrow profile, tapered buckets, commonly used for digging narrow trenches for laying pipes or cable. As standard they are supplied with open sides to allow water to flow out of the bucket.

The buckets are tapered from to bottom, and back to front so the least soil is removed whilst making drainage channels. They also lend themselves, therefore to micro trenching and digging narrow channels for laying pipe or cable.

{{ shop.name }}

Model	Carrier Weight	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	Weight (kg)	SAE Capacity (lt)
010-DR	1-2 Tonne	151	225	503	528	461	609	32	24
020-DR	2-3.5 Tonne	151	236	572	559	513	693	42	31
040-DR	4-6 Tonne	161	258	650	692	596	803	59	45
060-DR	6-9 Tonne	161	271	739	780	681	906	70	57
100-DR	10-18 Tonne	161	424	910	1063	1000	1121	155	120
200-DR	17-24 Tonne	280	470	994	1141	1095	1240	194	162

Earthmoving Buckets

1-2 Tonne Excavator Drain Bucket

4-6 Tonne Excavator Drain Bucket

2-3.5 Tonne Excavator Drain Bucket

10-18 Tonne Excavator Drain Bucket

6-9 Tonne Excavator Drain Bucket

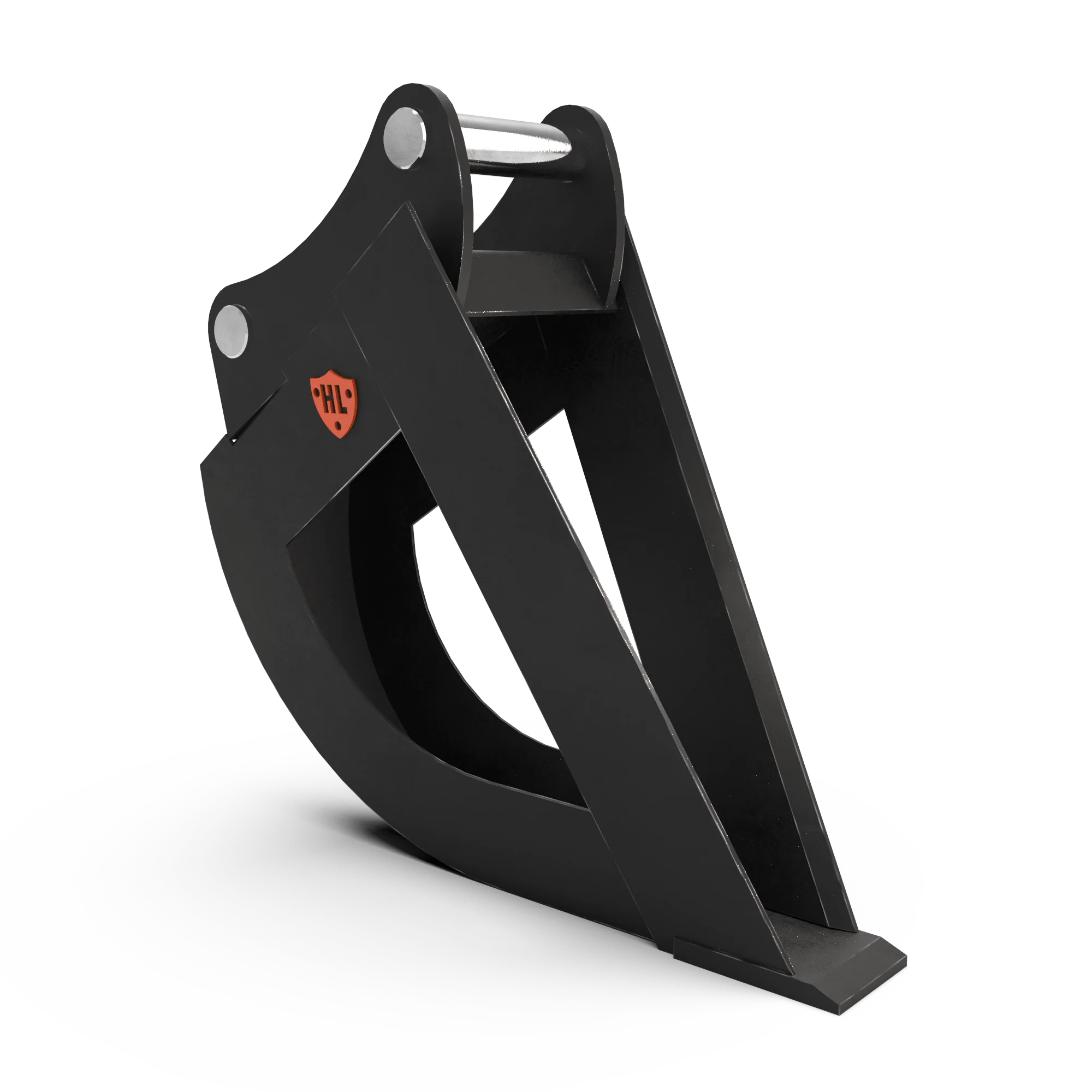

17-24 Tonne Excavator Drain Bucket

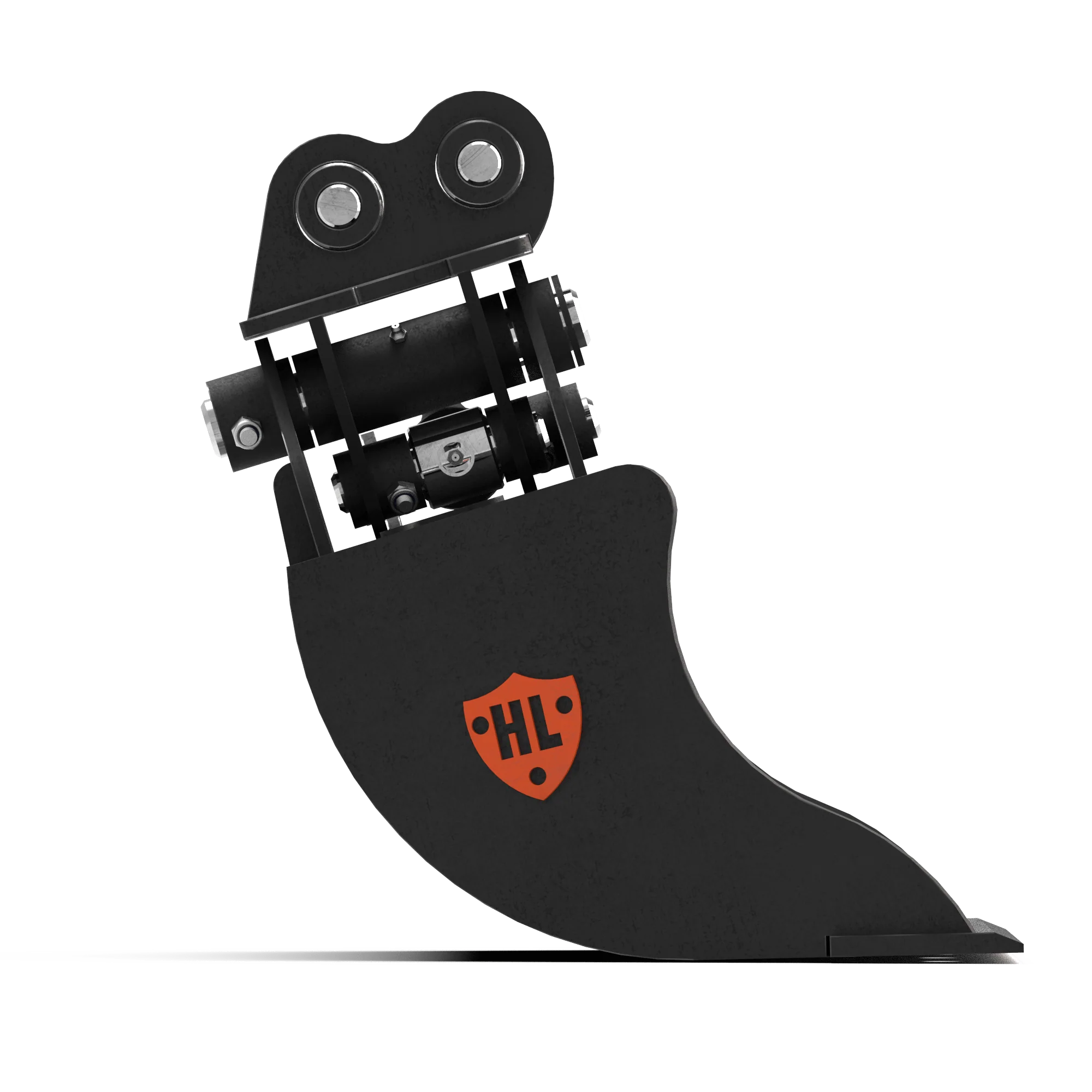

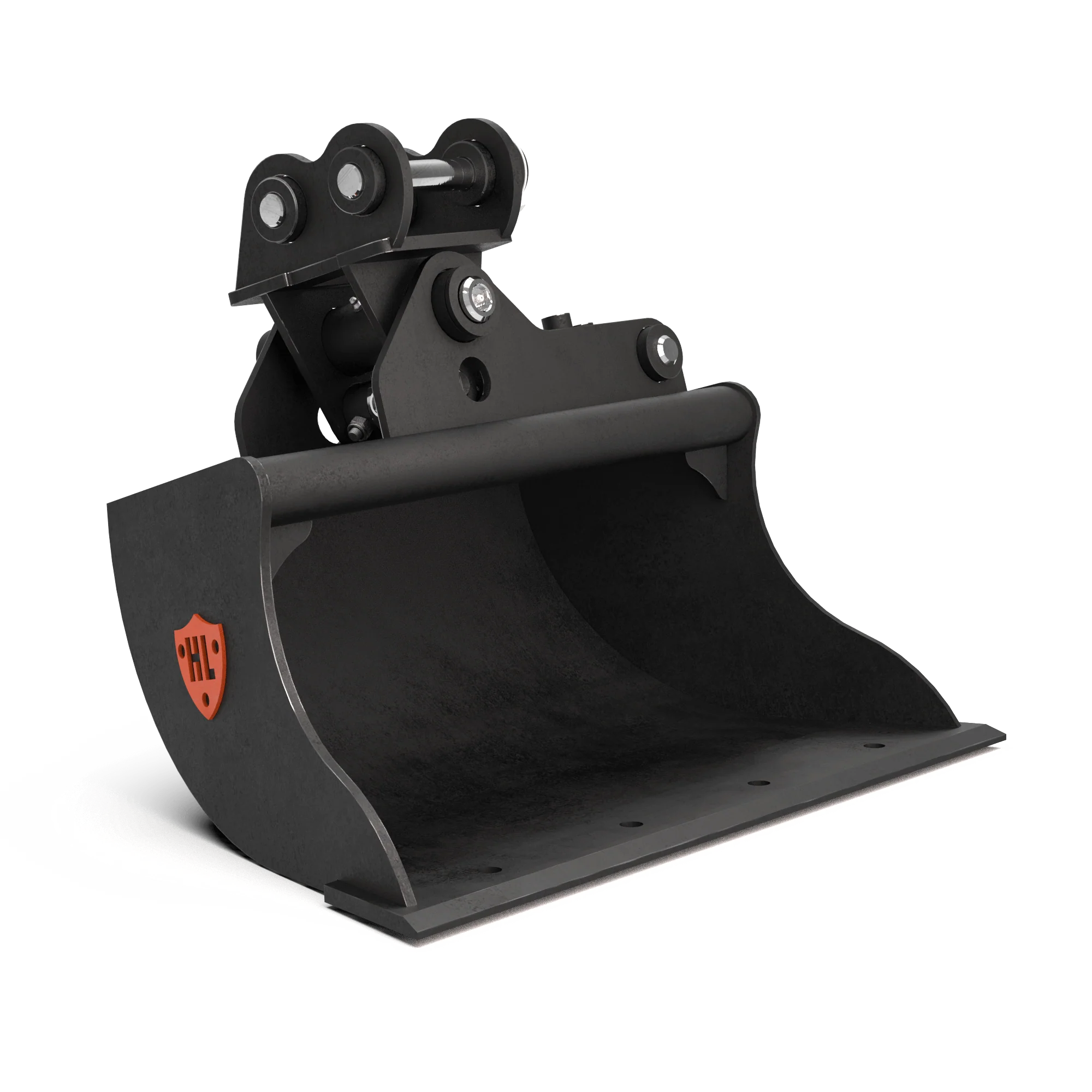

0.8-1.5 Tonne Excavator Scandinavian Tilt Bucket
